Data Center MPO MTP Fiber Optic Patch Cord Low Insertion 24 Cores MPO MTP Fiber Cable

Model Number : MTP/MPO-LC

Certification : ROHS

Place of Origin : China

MOQ : 1pc

Price : Negotiation

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 1000pcs/week

Delivery Time : 5-8working days

Packaging Details : Neutral packing

Materila : LSZH

Fiber Count : 8,12,24,48

Model : MM

Cable Color : Aqua

MTP/MPO Connector Color : Aqua

LC connector Color : Aqua

Contact Now

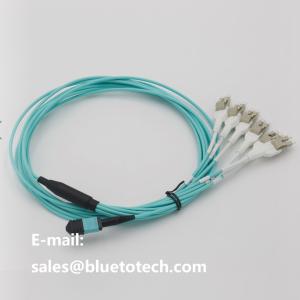

Data Center MPO MTP Cables breakout 8cores MPO/MTP to LC Uniboot connector Fiber Optic Patch Cord Multi mode

MPO/MTP ribbon and trunk mulitcore cable assemblies facilitate rapid deployment of high density backbone cabling in data centers and other high fiber environment, reducing network in stallation or reconfiguration time and cost.
MTP/MPO are used to interconnect cassettes, panels, or fan outs, it offered in fiber types in standard 8 , 12 ,24 ,or 48 cores

Feature

●Low Insertion loss;
●Low PDL;
●Compact Design;
●Good channel-to-channel uniformity;
●Wide Operating Temperature:From -40℃ to 85℃;
●High Reliability and Stability.

Model	Single Mode	Multi Mode
Fiber Count	8/12/24 cores
Polish	UPC /APC
Housing Colors	Standard (green),Elite (Yellow)	Standard(Beige)Elite(Auqa)
Insertion Loss Standard Type	≤0.7dB	≤0.5dB
Insertion Loss Elite Type	≤0.35dB	≤0.3dB
Return Loss	UPC >50dB, APC>60dB	>30dB
Durability (500 matings)	≤0.2dB
Test Wavelength	1310/1550nm	850/1300nm
